Zetron MIC100 Industrial Online Multi Gas Detector | Fixed 4-in-1 Gas Monitoring System for Oil, Chemical, and Wastewater Plants

  • Zetron MIC100 Industrial Online Multi Gas Detector | Fixed 4-in-1 Gas Monitoring System for Oil, Chemical, and Wastewater Plants
  • Zetron MIC100 Industrial Online Multi Gas Detector | Fixed 4-in-1 Gas Monitoring System for Oil, Chemical, and Wastewater Plants
  • Zetron MIC100 Industrial Online Multi Gas Detector | Fixed 4-in-1 Gas Monitoring System for Oil, Chemical, and Wastewater Plants
  • Zetron MIC100 Industrial Online Multi Gas Detector | Fixed 4-in-1 Gas Monitoring System for Oil, Chemical, and Wastewater Plants
Nguồn gốc Trung Quốc
Hàng hiệu Zetron
Chứng nhận CE, Atex
Số mô hình MIC100
Số lượng đặt hàng tối thiểu 1 bộ
Giá bán USD 100-545/set- 879/set
chi tiết đóng gói 29*26*13.5cm, 2.5kg
Thời gian giao hàng 1-10 ngày làm việc
Điều khoản thanh toán T/T, Western Union, Moneygram, D/P, D/A, L/C
Khả năng cung cấp 1000 BỘ / tuần

Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Tên sản phẩm MIC100 Kiểu Máy dò cố định
Các loại khí có thể phát hiện Khí dễ cháy, khí độc, VOC Độ chính xác đo lường ± 3% quy mô đầy đủ
Thời gian trả lời (T90) Khí dễ cháy: < 30 giây Nhiệt độ làm việc -40 ° C đến +70 ° C.
Chứng nhận chống nổ Exd IIC T6 Gb (khí dễ cháy) Exd ib IIC T6 Gb (khí độc) Bảo hành 1 năm
Để lại lời nhắn
Mô tả sản phẩm

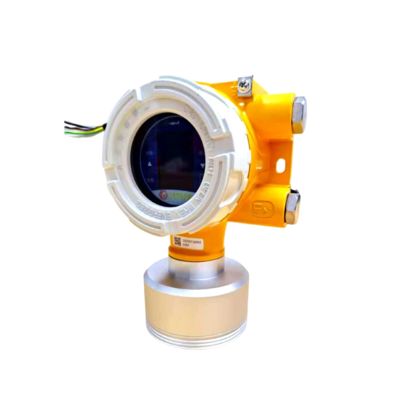

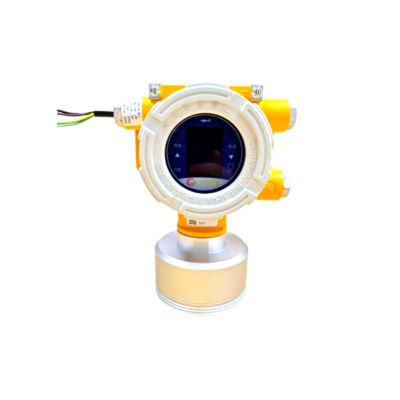

MIC100 Fixed Type 4-in-1 Gas Detector

The MIC100 Multi-Gas Online Detector is a high-performance, multi-functional gas detection terminal designed specifically for industrial safety applications. It can simultaneously monitor up to four different gases and can be flexibly configured to handle combustible gases, toxic and hazardous gases, and volatile organic compounds (VOCs).



The MIC100 integrates multiple advanced sensing technologies, including catalytic combustion, high-sensitivity electrochemical, precise non-dispersive infrared (NDIR), and fast-response photoionization (PID) sensors, ensuring superior measurement accuracy and reliability.



Its intelligent modular design, combined with a clear OLED display and convenient infrared remote control operation, greatly improves maintenance efficiency and enhances operational safety in hazardous environments. Additionally, the MIC100 features IP66-rated triple waterproof protection and strict explosion-proof certification, making it a reliable safeguard for personnel health and production safety.



Zetron MIC100 Industrial Online Multi Gas Detector | Fixed 4-in-1 Gas Monitoring System for Oil, Chemical, and Wastewater Plants 0



Key Features

  • Convenient and Intuitive Operation: Features an OLED display for clear and intuitive concentration readings. Supports infrared remote control operation, allowing users to perform parameter settings and calibration without opening the housing in hazardous areas—significantly enhancing safety and convenience.

  • Integrates catalytic combustion, electrochemical, NDIR, and PID technologies to ensure broad-spectrum and high-precision detection.

  • Modular smart sensors support quick replacement and maintenance; equipped with an OLED high-definition display and infrared remote control, allowing parameter settings without opening the housing.

  • Convenient and Intuitive Operation: Features an OLED display for clear and intuitive concentration readings. Supports infrared remote control operation, allowing users to perform parameter settings and calibration without opening the housing in hazardous areas—significantly enhancing safety and convenience.

Technical Specifications
Parameter Specification
Detectable Gas Types Combustible gases, toxic gases, VOCs
Core Sensing Principles Catalytic combustion, electrochemical, photoionization, thermal conductivity, NDIR infrared
Measurement Accuracy ±3% of full scale
Repeatability Error ±2%
Response Time (T90) Combustible gases: < 30 seconds
Working Voltage 24VDC (operating range: 10VDC to 30VDC)
Max Power Consumption Toxic gases: < 1.5W; Combustible gases: < 2.5W
Signal Output Interfaces 3-wire 4~20mA / 4-wire RS485 (simultaneous output); two sets of passive relay contacts (24VDC, 2A)
Housing Material High-strength aluminum alloy
Dimensions (L×W×H) 209 mm × 160 mm × 86 mm
Weight Approx. 2.1 kg
Installation Method Wall-mounted, horizontal or vertical pipe installation
Protection Rating IP66
Operating Temperature Range Toxic gases: -20°C ~ +50°C; Combustible gases: -40°C ~ +70°C
Humidity Range 10% ~ 95%RH (non-condensing)
Atmospheric Pressure Range 86 kPa ~ 106 kPa
Explosion-Proof Certification Exd IIC T6 Gb (combustible) / Exd ib IIC T6 Gb (toxic)
Metrology Certification CPA Certified
Compliance Standards GB15322.1-2019, GB3836.1/2/4-2021, GB12358-2006
Application Industries:

The MIC100 Multi-Gas Online Detector is widely used in petrochemical, oil and gas, chemical, metallurgy, environmental protection, and pharmaceutical industries. It provides continuous and accurate monitoring of combustible, toxic, and volatile gases in complex industrial environments, ensuring workplace safety, preventing gas leaks, and protecting both personnel and equipment through reliable real-time detection and alarm functions.

Zetron MIC100 Industrial Online Multi Gas Detector | Fixed 4-in-1 Gas Monitoring System for Oil, Chemical, and Wastewater Plants 1
